Hook On System

HOOK-ON SYSTEM - CONCEALED

HOOK-ON SYSTEM - CONCEALED

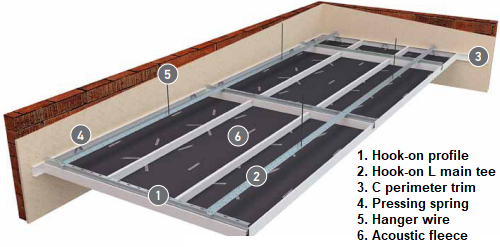

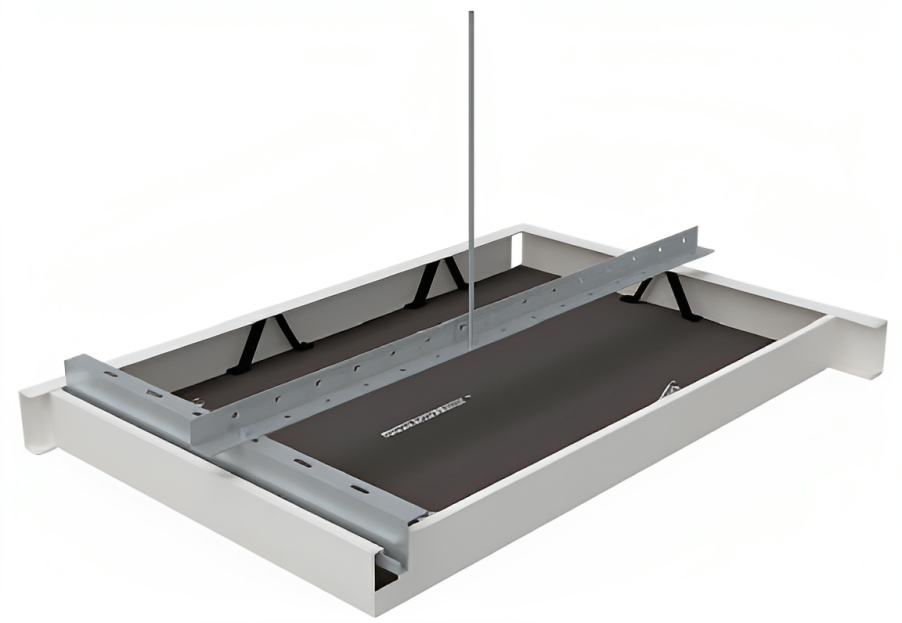

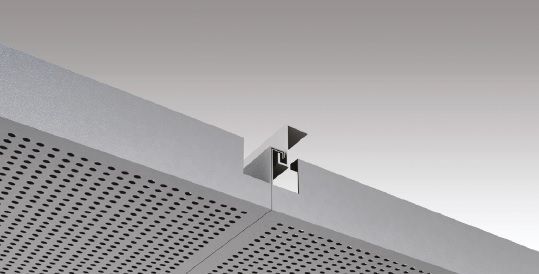

Our Hook- On system is used for large and small spaces, where there is a need for frequent access to the ceiling void (i.e. corridors). It is a concealed system and the panels are fully demountable with the help of a hooked grid profile suspending the aluminium or galvanised steel panels. This system enables the installation of larger panels from a size of 300mm up to 2400mm.

Installation Video

Data Sheet

Panel Type                   0.5 ~ 0.7 mm aluminium or

                                     galvanised steel

Panel Size                    Width from 300 mm and length

                                     up to 2400 mm

                                    Width from 600 mm and length

                                     up to 1200 mm

Grid System                Concealed grid

Perforation                  Full perforated, 5 cm - 10 cm                                                  bordered, non-perforated

                                     Ø 1.0 mm - Ø 1.5 mm

                                     Ø 1.8 mm - Ø 2.5 mm

Under Acoustic Felt     Local, Soundtex, Royalin,

                                      Lantor acoustic and non-flammable,                                       felt options

Certifications               CE - UKCA - ISO

Data Sheet


Panel Type                  0.5 ~ 0.7 mm aluminium or

                                     galvanised steel


Panel Size                    Width from 300 mm and                                          length up to 2400 mm

                                    Width from 600 mm and                                            length up to 1200 mm


Grid System                Concealed grid


Perforation                  Full perforated,

                                     5 cm - 10 cm bordered,                                             non-perforated

                                     Ø 1.0 mm - Ø 1.5 mm

                                     Ø 1.8 mm - Ø 2.5 mm


Under Acoustic Felt     Local, Soundtex, Royalin,

                                      Lantor acoustic and                                                    non-flammable,                                                          felt options


Certifications               CE - UKCA - ISO


Installation Video
